Deskripsi Produk

Transformer Kering SGOB 1250kva minangka piranti listrik canggih sing dirancang kanggo nyukupi panjaluk daya dhuwur ing setelan industri, komersial, lan institusi modern. Kanthi rating daya sing kuat 1250 kilovolt-ampere (kva), trafo iki minangka bukti inovasi teknologi lan teknik canggih, nyedhiyakake linuwih, efisiensi, lan daya tahan sing ora ana tandhingane.

Salah siji fitur standout saka SGOB 1250kva Dry Transformer punika garing-jinis desain sawijining. Ora kaya trafo sing diisi minyak tradisional, model iki ngilangi risiko bocor lan kontaminasi lingkungan, selaras karo upaya kelestarian global lan promosi solusi energi sing luwih resik. Pendekatan sing ramah lingkungan iki njamin yen trafo menehi kontribusi positif marang masyarakat lan planet.

Jejak trafo sing kompak lan konstruksi sing kuat ndadekake becik kanggo instalasi ing lingkungan sing keterbatasan ruang. Bangunan sing kuat njamin linuwih lan operasi sing lancar, sanajan ing setelan industri sing paling nuntut. Transformer Kering SGOB 1250kva bisa ndhukung beban sing akeh, dadi pilihan sing apik kanggo aplikasi ing ngendi panjaluk daya dhuwur konsisten lan kritis.

Saka fasilitas manufaktur lan pusat data menyang institusi kesehatan lan kampus pendhidhikan, Transformer Kering SGOB 1250kva siyap ngirim daya sing dipercaya ing ngendi lan nalika dibutuhake. Sistem cooling majeng sawijining mesthekake yen trafo makaryakke efisien lan quietly, minimalake polusi swara lan generasi panas. Iki, sabanjure, ngluwihi umur trafo lan nambah pengalaman pangguna sakabèhé.

Kajaba iku, Transformer Kering SGOB 1250kva dilengkapi fitur canggih sing dirancang kanggo nggedhekake efisiensi energi lan nyuda biaya operasional. Iki nggunakake bahan berkualitas tinggi lan teknik manufaktur canggih kanggo nyuda kerugian energi lan maksimalake pangiriman daya menyang beban. Iki njamin bisnis bisa ngoptimalake konsumsi energi, nyuda jejak karbon, lan ngirit dhuwit kanggo tagihan energi.

Saliyane specifications technical nyengsemaken, SGOB 1250kva Dry Transformer uga dikenal kanggo ease saka pangopènan lan keluwesan. Desain modular ngidini akses lan layanan sing gampang, nyuda downtime lan biaya pangopènan. Salajengipun, trafo bisa disesuaikan kanggo nyukupi syarat pelanggan tartamtu, mesthekake yen cocog karo aplikasi utawa lingkungan apa wae.

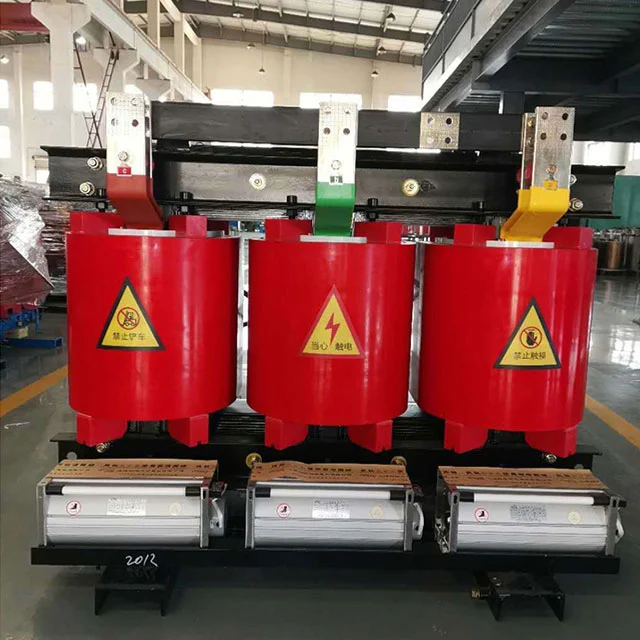

1250kva Dry Transformer

FITUR PRODUK

The epoxy resin cast 1250kva Garing Transformer diprodhuksi dening Shanghai Industrial Transformer Co., Ltd. dikembangaké lan dirancang ing kerjasama karo Shenyang Transformer Research Institute dening ngenalke teknologi manca majeng. Indeks linuwih produk wis tekan tingkat majeng internasional.

SGOB 1250kva Garing Transformer aman, flame-retardant lan geni-bukti, polusi-free, lan bisa langsung diinstal ing tengah mbukak. Iku bebas pangopènan, gampang kanggo nginstal, biaya operasi lengkap kurang, mundhut kurang, kinerja Kelembapan-bukti apik, bisa operate biasane ing 100% asor, lan bisa sijine menyang operasi tanpa wis garing sawise mati. Wis discharge sebagean kurang, gangguan kurang, fungsi boros panas kuwat, lan bisa operate ing 150% dirating mbukak ing kahanan cooling online dipeksa.

Transformer Kering SGOB 1250kva saiki akeh digunakake ing bangunan dhuwur, pusat komersial, bandara, stasiun, dermaga, subway, pabrik, stasiun distribusi lemah, platform pengeboran minyak lepas pantai, pembangkit listrik lan papan liyane kanthi lingkungan sing atos lan kahanan panggunaan.

1250kva Dry Transformer

Bahan lan fitur utama

Koil nggunakake kabel tembaga terisolasi kelas F minangka konduktor lan serat kaca lan bahan komposit resin epoksi minangka insulasi. Koefisien ekspansi cedhak karo konduktor tembaga lan nduweni resistensi dampak sing apik, resistensi owah-owahan suhu lan resistensi retak. Kabeh komponen serat kaca lan resin epoksi bisa mateni dhewe lan ora bakal terus diobong. Ing wektu sing padha, kumparan voltase dhuwur dibuwang nganggo resin epoksi ing kahanan vakum 1mbar, lan ora ana umpluk ing jero kumparan, supaya discharge parsial kumparan cilik. Ing wektu sing padha, mundhut trafo dikurangi kanthi efektif.

Inti wesi saka trafo digawe saka 30EH120 seri saka dhuwur-permeabilitas kadhemen-mbalek lembaran baja silikon karo orientasi gandum tertib diimpor saka Nippon Steel, Japan, karo 45 ° joints full-bevel lan papat-tingkat langkah-langkah dening-stacking. Lumahing inti wesi disegel karo cat resin insulating kanggo nyegah kelembapan lan karat, lan loro clamps lan fasteners duwe lapisan protèktif anti-karat. Inti wesi kabeh nganggo rakit wesi sing ora ditumpuk lan struktur piring tarik baja, sing kanthi efektif nyuda mundhut tanpa beban, arus tanpa beban lan gangguan inti wesi.

For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.

The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure, beautiful appearance, etc., and enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.

1250kva Dry Transformer

DESKRIPSI PRODUK

Epoxy resin terisolasi jinis garing trafo produk banget aman. Bisa langsung diinstal ing tengah mbukak. Kerjane kanthi apik ing lingkungan kelembapan 100% tanpa pangatusan sadurunge. Wis akeh digunakake ing lapangan konstruksi, pusat komersial, bandara, stasiun, pelabuhan, subway, pabrik, stasiun distribusi daya lemah, platform pengeboran minyak lepas pantai, pembangkit listrik dll.

FITUR PRODUK

● Tahan geni

● Kelembapan resistance

● Easy maintenance and installation

● Mlaku kanthi apik sajrone kahanan lingkungan sing atos

● Produk non-polusi

● Low loss during the comprehensive operation

Dry Transformer

PARAMETER

MODEL	Ora LOAD LOAD (W)	MOTO LOSS (120%)	IMPENDENCE (%)	NOLOAD SAIKI (%)	TINGKAT SUMUT (Lpa) dB	BOOT (KG)
SC(B)10-30/10	205	750	4	2.3	57	290
SC(B)10-50/10	285	1060		2.2	57	360
SC(B)10-80/10	380	1460		1.7	59	590
SC(B)10-100/10	410	1670		1.7	59	640
SC(B)10-125/10	470	1960		1.5	60	670
SC(B)10-160/10	550	2250		1.5	60	870
SC(B)10-200/10	650	2680		1.3	61	1040
SC(B)10-250/10	740	2920		1.3	61	1220
SC(B)10-315/10	880	3670		1.1	63	1470
SC(B)10-400/10	1000	4220		1.1	63	1760
SC(B)10-500/10	1180	5170		1.1	64	2050
SC(B)10-630/10	1300	6310	6	0.9	65	2360
SC(B)10-800/10	1540	7360		0.9	65	2730
SC(B)10-1000/10	1750	8610		0.9	65	3270
SC(B)10-1250/10	2030	10260		0.9	67	3840
SC(B)10-1600/10	2700	12400		0.9	68	4920
SC(B)10-2000/10	3000	15300		0.7	70	5780
SC(B)10-2500/10	3500	18180		0.7	71	6600
SC(B)10-3150/10	4000	18800		0.5	71	7800
SC(B)10-4000/10	4700	22000		0.5	76	10000

MODEL	DIMENSION(MM)
MODEL	a	b	c	d	e	f	g	h	K₁	K₂
SC(Z)(B) 10-30/10	1120	850	1100	400	750	640	290	260	270	135
SC(Z)(B) 10-50/10	1170	850	1160	400	810	700	310	270	290	145
SC(Z)(B)10-80/10	1210	900	1240	450	890	760	320	280	290	145
SC(Z)(B)10-100/10	1240	900	1280	450	940	880	320	275	295	142.5
SC(Z)(B)10-125/10	1270	950	1330	550	980	920	325	280	310	155
SC(Z)(B)10-160/10	1310	1100	1360	550	1010	960	305	260	315	157.5
SC(Z)(B)10-200/10	1350	1140	1400	660	1050	980	310	265	340	170
SC(Z)(B)10-250/10	1420	1210	1430	660	1075	1010	300	255	355	177.5
SC(Z)(B)10-315/10	1460	1250	1460	660	1100	1050	305	260	365	182.5
SC(Z)(B)10-400/10	1520	1280	1520	660	1165	1090	315	270	375	187.5
SC(Z)(B)10-500/10	1530	1320	1580	660	1205	1150	320	275	385	182.5
SC(Z)(B)10-630/10	1670	1350	1630	660	1280	1200	325	280	430	215
SC(Z)(B)10-800/10	1680	1350	1650	820	1300	1220	340	295	445	222.5
SC(Z)(B)10-1000/10	1770	1420	1750	820	1390	1310	345	300	465	232.5
SC(Z)(B)10-1250/10	1880	1530	1790	820	1430	1350	355	310	485	242.5
SC(Z)(B)10-1600/10	1960	1530	1860	1070	1520	1420	375	330	510	255
SC(Z)(B)10-2000/10	2000	1620	1960	1070	1600	1500	395	350	510	255
SC(Z)(B)10-2500/10	2100	1680	2040	1070	1680	1560	425	380	550	275
SC(Z)(B)10-3150/10	2240	1750	2150	1070	1800	1660	460	410	580	290
SC(Z)(B) 10-4000/10	2370	1840	2310	1070	1960	1800	500	450	630	315

MODEL	KAPASITAS (KVA)	LENGKA (MM)	Jembar (MM)	Dhuwur (MM)	LONGITUDINAL (MM)	HORIZONTAL (MM)	BOOT (KG)
SC(Z)(B) 10-30/10	30	770	500	750	400	450	285
SC(Z)(B) 10-50/10	50	820	500	810	400	450	330
SC(Z)(B)10-80/10	80	860	550	890	450	500	465
SC(Z)(B)10-100/10	100	890	650	940	450	600	530
SC(Z)(B)10-125/10	125	920	650	980	550	600	640
SC(Z)(B)10-160/10	160	960	800	1010	550	750	760
SC(Z)(B)10-200/10	200	1000	800	1050	660	750	905
SC(Z)(B)10-250/10	250	1070	900	1075	660	850	1085
SC(Z)(B)10-315/10	315	1110	900	1100	660	850	1175
SC(Z)(B)10-400/10	400	1170	900	1165	660	850	1460
SC(Z)(B) 10-500/10	500	1180	970	1205	660	920	1670
SC(Z)(B) 10-630/10	630	1320	1000	1280	660	950	1890
SC(Z)(B)10-800/10	800	1325	1000	1300	820	950	2320
SC(Z)(B)10-1000/10	1000	1420	1180	1390	820	950	2800
SC(Z)(B)10-1250/10	1250	1530	1320	1430	820	1270	3255
SC(Z)(B)10-1600/10	1600	1610	1320	1520	1070	1270	4115
SC(Z)(B) 10-2000/10	2000	1650	1500	1600	1070	1450	4690
SC(Z)(B)10-2500/10	2500	1750	1550	1680	1070	1500	5620
SC(Z)(B) 10-3150/10	3150	1890	1550	1800	1070	1500	6850
SC(Z)(B) 10-4000/10	4000	2020	1630	1960	1070	1580	8110

Dry Transformer

COMPANY PROFILE

Shanghai Industry Transformers Co., Ltd (SGOB) minangka pemasok peralatan distribusi listrik lengkap. Produk kita kalebu:

● Trafo kacemplungaken lenga

● 35KV trafo kacemplungaken lenga

● Expoxy resin jampel garing-jinis trafo daya

● Transformer distribusi paduan amorf

● trafo photovoltaic

● trafo daya angin

● Transformers gardu kothak-gaya

company company

Perusahaan kita didegake ing taun 2007 lan saiki duwe bengkel 40,000sqm lan luwih saka 200 karyawan. Produk kita akeh digunakake ing macem-macem industri kayata pembangkit listrik lan distribusi, produksi batu bara, metalurgi, minyak lan gas, bahan kimia, konstruksi, pelabuhan, bandara, sepur lan infrastruktur kotamadya.

company

Kita uga gawé peralatan sing gegandhengan kayata lemari listrik lan enclosures, kothak switchgear Saiki, kita ngembangaken baris produk kita menyang wilayah-related daya liyane kaya konektor shrink panas, kabel listrik lan peralatan mechanical gadhah etc. Kita goal kanggo mbangun siji-mandeg peralatan listrik lan platform sumber bagean kanggo basis pelanggan global kita.

company company

Kita ngandelake sistem kontrol kualitas sing ketat kanggo ngirim produk kanthi kualitas sing paling dhuwur. Saka 200 karyawan, 46 minangka pengalaman insinyur. Sistem kualitas kita kalebu kualifikasi kanggo:

● Pusat Pengawasan Kualitas Transformers Nasional China

● Sistem Manajemen Mutu ISO-9001:2008

● ISO-14001:2004 Sistem Manajemen Lingkungan

● Sistem Kesehatan lan Keamanan OHSMS18000

certificate
