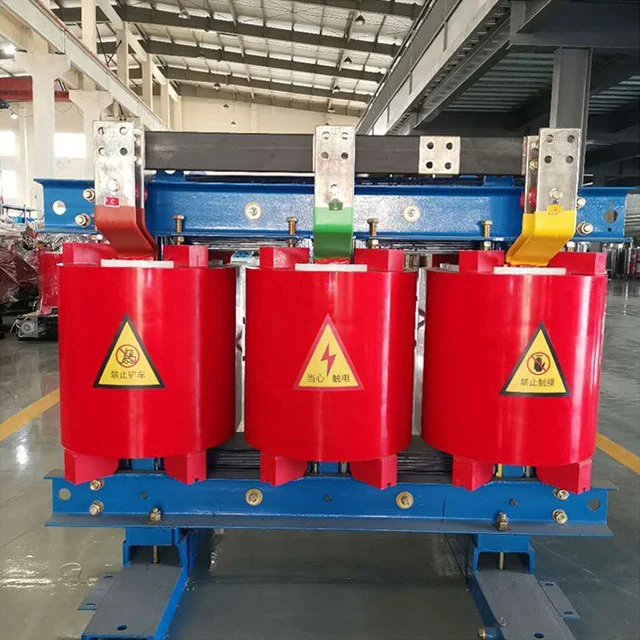

Transformer Kering SGOB 800kva ditondoi kanthi ukuran sing kompak lan konstruksi sing kuat, saengga cocog kanggo instalasi ing wilayah sing winates. Bangunan sing padhet njamin linuwih lan fungsi sing lancar, sanajan ing lingkungan industri sing tantangan. Kanthi kapasitas kanggo nangani beban sing signifikan, trafo iki muncul minangka pilihan sing luar biasa kanggo aplikasi sing terus-terusan mbutuhake tingkat daya sing dhuwur lan stabilitas daya sing paling penting, kayata ing pabrik manufaktur, pusat data, lan fasilitas kesehatan.
Transformer Kering SGOB 800kva minangka piranti listrik berkapasitas dhuwur lan kinerja dhuwur sing dirancang kanggo nyukupi panjaluk sing ketat ing setelan industri, komersial, lan institusi modern. Kanthi rating daya sing kuat 800 kilovolt-ampere (kva), trafo iki menehi keandalan lan efisiensi sing ora bisa ditandingi, dadi solusi daya serbaguna kanggo macem-macem aplikasi.
Desain insulasi jinis garing trafo ngilangi risiko bocor minyak, nyuda syarat pangopènan lan dampak lingkungan. Transformer sing ramah lingkungan iki selaras karo upaya kelestarian global, promosi solusi energi sing luwih resik lan nyuda emisi karbon.
Transformer Kering SGOB 800kva nduweni tapak sing kompak lan konstruksi sing tahan lama, saengga cocog kanggo instalasi ing lingkungan sing ora ana ruang. Bangunan sing kuat njamin linuwih jangka panjang lan operasi sing lancar, sanajan ing setelan industri sing nuntut. Kemampuan trafo kanggo ndhukung beban sing akeh ndadekake pilihan sing apik kanggo aplikasi sing panjaluk daya dhuwur konsisten lan kritis, kayata fasilitas manufaktur, pusat data, lan institusi kesehatan.
Saliyane kemampuan nangani daya sing kuat, Transformer Kering SGOB 800kva nawakake efisiensi energi sing nyengsemaken. Nyilikake kerugian energi, maksimalake pangiriman daya menyang beban lan nyuda biaya operasional. Iki ndadekake pilihan sing cocog kanggo bisnis sing pengin ngoptimalake konsumsi energi lan nyuda jejak karbon.
FITUR PRODUK
Transformer Kering 800kva resin epoksi sing diprodhuksi dening Shanghai Industrial Transformer Co., Ltd. dikembangake lan dirancang kanthi kerjasama karo Institut Riset Transformer Shenyang kanthi ngenalake teknologi asing sing maju. Indeks linuwih produk wis tekan tingkat majeng internasional.
SGOB 800kva Garing Transformer aman, flame-retardant lan geni-bukti, polusi-free, lan bisa langsung diinstal ing tengah mbukak. Iku bebas pangopènan, gampang kanggo nginstal, biaya operasi lengkap kurang, mundhut kurang, kinerja Kelembapan-bukti apik, bisa operate biasane ing 100% asor, lan bisa sijine menyang operasi tanpa wis garing sawise mati. Wis discharge sebagean kurang, gangguan kurang, fungsi boros panas kuwat, lan bisa operate ing 150% dirating mbukak ing kahanan cooling online dipeksa.
Transformer Kering SGOB 800kva saiki akeh digunakake ing bangunan dhuwur, pusat komersial, bandara, stasiun, dermaga, subway, pabrik, stasiun distribusi lemah, platform pengeboran minyak lepas pantai, pembangkit listrik lan papan liyane kanthi lingkungan sing atos lan kahanan panggunaan.
Bahan lan fitur utama
Koil nggunakake kabel tembaga terisolasi kelas F minangka konduktor lan serat kaca lan bahan komposit resin epoksi minangka insulasi. Koefisien ekspansi cedhak karo konduktor tembaga lan nduweni resistensi dampak sing apik, resistensi owah-owahan suhu lan resistensi retak. Kabeh komponen serat kaca lan resin epoksi bisa mateni dhewe lan ora bakal terus diobong. Ing wektu sing padha, kumparan voltase dhuwur dibuwang nganggo resin epoksi ing kahanan vakum 1mbar, lan ora ana umpluk ing jero kumparan, supaya discharge parsial kumparan cilik. Ing wektu sing padha, mundhut trafo dikurangi kanthi efektif.
Inti wesi saka trafo digawe saka 30EH120 seri saka dhuwur-permeabilitas kadhemen-mbalek lembaran baja silikon karo orientasi gandum tertib diimpor saka Nippon Steel, Japan, karo 45 ° joints full-bevel lan papat-tingkat langkah-langkah dening-stacking. Lumahing inti wesi disegel karo cat resin insulating kanggo nyegah kelembapan lan karat, lan loro clamps lan fasteners duwe lapisan protèktif anti-karat. Inti wesi kabeh nganggo rakit wesi sing ora ditumpuk lan struktur piring tarik baja, sing kanthi efektif nyuda mundhut tanpa beban, arus tanpa beban lan gangguan inti wesi.
For low voltage and high current coils, the short circuit stress is large when short circuit occurs, and the number of low voltage turns is small. The larger the low voltage current is, the more prominent the problem of unstable ampere-turns will be when the wire winding type is used. The heat dissipation problem also needs to be considered. At this time, the use of foil winding for low voltage can better solve the above problems. First of all, foil products do not have axial turns and axial winding spiral angles. The ampere-turns of high and low voltage windings are balanced, and the axial stress of the transformer is small when short circuit occurs. Secondly, due to its thin insulation, multi-layer air ducts can be set at will in the process, and the heat dissipation problem is also better solved. The internal welding of the coil adopts xenon protection welding on the fully automatic foil winding machine, which has high precision, low welding resistance, and no external welding process. DMD insulation is used between the winding layers, and the ends are sealed and cured with resin after winding.
The cross-flow top-blowing cooling fan is adopted, which has the characteristics of low noise, high wind pressure, beautiful appearance, etc., and enhances the overload capacity of the transformer. The temperature control adopts an intelligent temperature controller to improve the safety and reliability of the transformer operation.
DESKRIPSI PRODUK
Epoxy resin terisolasi jinis garing trafo produk banget aman. Bisa langsung diinstal ing tengah mbukak. Kerjane kanthi apik ing lingkungan kelembapan 100% tanpa pangatusan sadurunge. Wis akeh digunakake ing lapangan konstruksi, pusat komersial, bandara, stasiun, pelabuhan, subway, pabrik, stasiun distribusi daya lemah, platform pengeboran minyak lepas pantai, pembangkit listrik dll.
FITUR PRODUK
● Tahan geni
● Kelembapan resistance
● pangopènan lan instalasi gampang
● Mlaku kanthi apik sajrone kahanan lingkungan sing atos
● Produk non-polusi
● Low mundhut sak operasi lengkap
PARAMETER
| MODEL | Ora LOAD LOAD (W) |
MOTO LOSS (120%) |
IMPENDENCE (%) |
NOLOAD SAIKI (%) |
TINGKAT SUMUT (Lpa) dB |
BOOT (KG) |
| SC(B)10-30/10 | 205 | 750 | 4 | 2.3 | 57 | 290 |
| SC(B)10-50/10 | 285 | 1060 | 2.2 | 57 | 360 | |
| SC(B)10-80/10 | 380 | 1460 | 1.7 | 59 | 590 | |
| SC(B)10-100/10 | 410 | 1670 | 1.7 | 59 | 640 | |
| SC(B)10-125/10 | 470 | 1960 | 1.5 | 60 | 670 | |
| SC(B)10-160/10 | 550 | 2250 | 1.5 | 60 | 870 | |
| SC(B)10-200/10 | 650 | 2680 | 1.3 | 61 | 1040 | |
| SC(B)10-250/10 | 740 | 2920 | 1.3 | 61 | 1220 | |
| SC(B)10-315/10 | 880 | 3670 | 1.1 | 63 | 1470 | |
| SC(B)10-400/10 | 1000 | 4220 | 1.1 | 63 | 1760 | |
| SC(B)10-500/10 | 1180 | 5170 | 1.1 | 64 | 2050 | |
| SC(B)10-630/10 | 1300 | 6310 | 6 | 0.9 | 65 | 2360 |
| SC(B)10-800/10 | 1540 | 7360 | 0.9 | 65 | 2730 | |
| SC(B)10-1000/10 | 1750 | 8610 | 0.9 | 65 | 3270 | |
| SC(B)10-1250/10 | 2030 | 10260 | 0.9 | 67 | 3840 | |
| SC(B)10-1600/10 | 2700 | 12400 | 0.9 | 68 | 4920 | |
| SC(B)10-2000/10 | 3000 | 15300 | 0.7 | 70 | 5780 | |
| SC(B)10-2500/10 | 3500 | 18180 | 0.7 | 71 | 6600 | |
| SC(B)10-3150/10 | 4000 | 18800 | 0.5 | 71 | 7800 | |
| SC(B)10-4000/10 | 4700 | 22000 | 0.5 | 76 | 10000 |
| MODEL | UKURAN (MM) | |||||||||
| a | b | c | d | e | f | g | h | K1 | K2 | |
| SC(Z)(B) 10-30/10 | 1120 | 850 | 1100 | 400 | 750 | 640 | 290 | 260 | 270 | 135 |
| SC(Z)(B) 10-50/10 | 1170 | 850 | 1160 | 400 | 810 | 700 | 310 | 270 | 290 | 145 |
| SC(Z)(B)10-80/10 | 1210 | 900 | 1240 | 450 | 890 | 760 | 320 | 280 | 290 | 145 |
| SC(Z)(B)10-100/10 | 1240 | 900 | 1280 | 450 | 940 | 880 | 320 | 275 | 295 | 142.5 |
| SC(Z)(B)10-125/10 | 1270 | 950 | 1330 | 550 | 980 | 920 | 325 | 280 | 310 | 155 |
| SC(Z)(B)10-160/10 | 1310 | 1100 | 1360 | 550 | 1010 | 960 | 305 | 260 | 315 | 157.5 |
| SC(Z)(B)10-200/10 | 1350 | 1140 | 1400 | 660 | 1050 | 980 | 310 | 265 | 340 | 170 |
| SC(Z)(B)10-250/10 | 1420 | 1210 | 1430 | 660 | 1075 | 1010 | 300 | 255 | 355 | 177.5 |
| SC(Z)(B)10-315/10 | 1460 | 1250 | 1460 | 660 | 1100 | 1050 | 305 | 260 | 365 | 182.5 |
| SC(Z)(B)10-400/10 | 1520 | 1280 | 1520 | 660 | 1165 | 1090 | 315 | 270 | 375 | 187.5 |
| SC(Z)(B)10-500/10 | 1530 | 1320 | 1580 | 660 | 1205 | 1150 | 320 | 275 | 385 | 182.5 |
| SC(Z)(B)10-630/10 | 1670 | 1350 | 1630 | 660 | 1280 | 1200 | 325 | 280 | 430 | 215 |
| SC(Z)(B)10-800/10 | 1680 | 1350 | 1650 | 820 | 1300 | 1220 | 340 | 295 | 445 | 222.5 |
| SC(Z)(B)10-1000/10 | 1770 | 1420 | 1750 | 820 | 1390 | 1310 | 345 | 300 | 465 | 232.5 |
| SC(Z)(B)10-1250/10 | 1880 | 1530 | 1790 | 820 | 1430 | 1350 | 355 | 310 | 485 | 242.5 |
| SC(Z)(B)10-1600/10 | 1960 | 1530 | 1860 | 1070 | 1520 | 1420 | 375 | 330 | 510 | 255 |
| SC(Z)(B)10-2000/10 | 2000 | 1620 | 1960 | 1070 | 1600 | 1500 | 395 | 350 | 510 | 255 |
| SC(Z)(B)10-2500/10 | 2100 | 1680 | 2040 | 1070 | 1680 | 1560 | 425 | 380 | 550 | 275 |
| SC(Z)(B)10-3150/10 | 2240 | 1750 | 2150 | 1070 | 1800 | 1660 | 460 | 410 | 580 | 290 |
| SC(Z)(B) 10-4000/10 | 2370 | 1840 | 2310 | 1070 | 1960 | 1800 | 500 | 450 | 630 | 315 |
| MODEL | KAPASITAS (KVA) |
LENGTH (MM) |
Jembar (MM) | Dhuwur (MM) |
LONGITUDINAL (MM) | HORIZONTAL (MM) | BOOT (KG) |
| SC(Z)(B) 10-30/10 | 30 | 770 | 500 | 750 | 400 | 450 | 285 |
| SC(Z)(B) 10-50/10 | 50 | 820 | 500 | 810 | 400 | 450 | 330 |
| SC(Z)(B)10-80/10 | 80 | 860 | 550 | 890 | 450 | 500 | 465 |
| SC(Z)(B)10-100/10 | 100 | 890 | 650 | 940 | 450 | 600 | 530 |
| SC(Z)(B)10-125/10 | 125 | 920 | 650 | 980 | 550 | 600 | 640 |
| SC(Z)(B)10-160/10 | 160 | 960 | 800 | 1010 | 550 | 750 | 760 |
| SC(Z)(B)10-200/10 | 200 | 1000 | 800 | 1050 | 660 | 750 | 905 |
| SC(Z)(B)10-250/10 | 250 | 1070 | 900 | 1075 | 660 | 850 | 1085 |
| SC(Z)(B)10-315/10 | 315 | 1110 | 900 | 1100 | 660 | 850 | 1175 |
| SC(Z)(B)10-400/10 | 400 | 1170 | 900 | 1165 | 660 | 850 | 1460 |
| SC(Z)(B) 10-500/10 | 500 | 1180 | 970 | 1205 | 660 | 920 | 1670 |
| SC(Z)(B) 10-630/10 | 630 | 1320 | 1000 | 1280 | 660 | 950 | 1890 |
| SC(Z)(B)10-800/10 | 800 | 1325 | 1000 | 1300 | 820 | 950 | 2320 |
| SC(Z)(B)10-1000/10 | 1000 | 1420 | 1180 | 1390 | 820 | 950 | 2800 |
| SC(Z)(B)10-1250/10 | 1250 | 1530 | 1320 | 1430 | 820 | 1270 | 3255 |
| SC(Z)(B)10-1600/10 | 1600 | 1610 | 1320 | 1520 | 1070 | 1270 | 4115 |
| SC(Z)(B) 10-2000/10 | 2000 | 1650 | 1500 | 1600 | 1070 | 1450 | 4690 |
| SC(Z)(B)10-2500/10 | 2500 | 1750 | 1550 | 1680 | 1070 | 1500 | 5620 |
| SC(Z)(B) 10-3150/10 | 3150 | 1890 | 1550 | 1800 | 1070 | 1500 | 6850 |
| SC(Z)(B) 10-4000/10 | 4000 | 2020 | 1630 | 1960 | 1070 | 1580 | 8110 |
PROFIL PERUSAHAAN
Shanghai Industry Transformers Co., Ltd (SGOB) minangka pemasok peralatan distribusi listrik lengkap. Produk kita kalebu:
● Trafo kacemplungaken lenga
● 35KV trafo kacemplungaken lenga
● Expoxy resin jampel garing-jinis trafo daya
● Transformer distribusi paduan amorf
● trafo photovoltaic
● trafo daya angin
● Transformers gardu kothak-gaya
Perusahaan kita didegake ing taun 2007 lan saiki duwe bengkel 40,000sqm lan luwih saka 200 karyawan. Produk kita akeh digunakake ing macem-macem industri kayata pembangkit listrik lan distribusi, produksi batu bara, metalurgi, minyak lan gas, bahan kimia, konstruksi, pelabuhan, bandara, sepur lan infrastruktur kotamadya.
Kita uga gawé peralatan sing gegandhengan kayata lemari listrik lan enclosures, kothak switchgear Saiki, kita ngembangaken baris produk kita menyang wilayah-related daya liyane kaya konektor shrink panas, kabel listrik lan peralatan mechanical gadhah etc. Kita goal kanggo mbangun siji-mandeg peralatan listrik lan platform sumber bagean kanggo basis pelanggan global kita.
Kita ngandelake sistem kontrol kualitas sing ketat kanggo ngirim produk kanthi kualitas sing paling dhuwur. Saka 200 karyawan, 46 minangka pengalaman insinyur. Sistem kualitas kita kalebu kualifikasi kanggo:
● National Transformers Quality Supervision Center of China
● ISO-9001:2008 Quality Management System
● ISO-14001:2004 Sistem Manajemen Lingkungan
● Sistem Kesehatan lan Keamanan OHSMS18000
Paten kita:
Kapabilitas tes produksi lan kualitas kalebu:
● Penggulungan foil otomatis
● Digital silikon baja sheeting lan slitting
● Kanthi otomatis vakum pangatusan open lan baris varnish
● HAEFLY partial discharge tester
● HAEFLY power analyzer
● HAEFLY harmonik analyzer
Asil kasebut minangka produk efisiensi dhuwur, boros daya sing luwih murah lan swara sing sithik kanggo nggedhekake investasi infrastruktur sampeyan.
